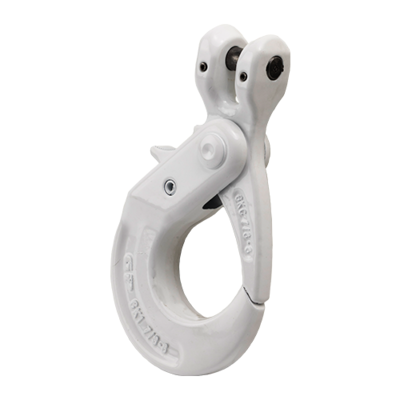

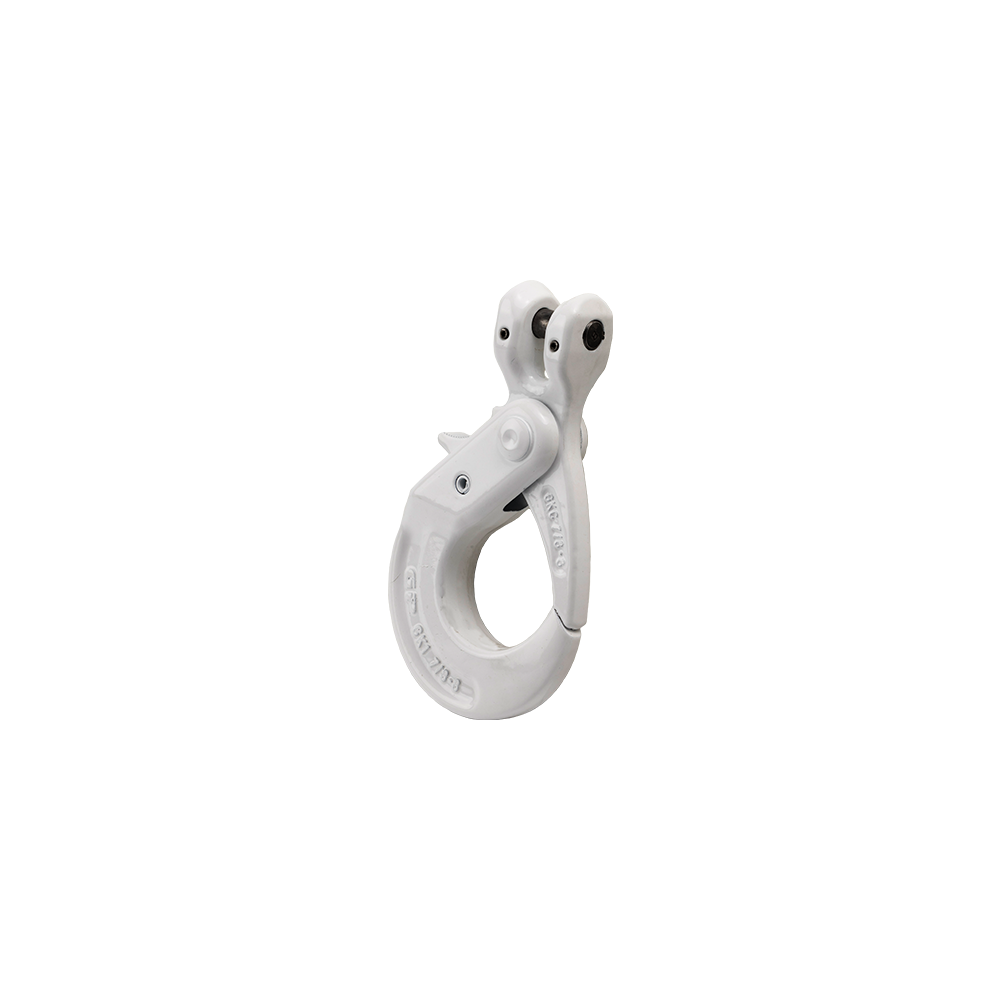

Clevis Self Locking Hook GKC, Green Pin®

The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The GK hook is a compact, lightweight hook. In comparison to an XL hook, it has the same working load limit, with a smaller size. The clevis design enables a direct connection to grade 8 chain. The Green Pin® Self-Locking Hook CL is available in a range to suit 7/8 mm up to 22 mm grade 8 chain.

Certification: At no extra charge this product can be supplied with a works certificate, and/or EC Declaration of Conformity.

  • Material: Alloy steel, quenched and tempered.
  • Temperature range: -40°C up to +200°C
  • Safety factor: 4:1
  • Grade: 8

Filters
WLL ton
Grade

no search results

Stainless
Approved for lifting
Stock availability

Show more filters

Part CodeChain diameter
mm
WLL
ton
Weight
kg
Delivery timeBlueprintCAD-fileAdd to cartMore details
4013002003907-820.5510
Part Code401300200390
Chain diameter
mm
7-8
WLL
ton
2
Weight
kg
0.55
Delivery time10
Blueprint
CAD-file
401300320390103.21.0210
Part Code401300320390
Chain diameter
mm
10
WLL
ton
3.2
Weight
kg
1.02
Delivery time10
Blueprint
CAD-file
401300540390135.42.012
Part Code401300540390
Chain diameter
mm
13
WLL
ton
5.4
Weight
kg
2.01
Delivery time2
Blueprint
CAD-file
401300820390168.23.5610
Part Code401300820390
Chain diameter
mm
16
WLL
ton
8.2
Weight
kg
3.56
Delivery time10
Blueprint
CAD-file
40130128039018-2012.87.2810
Part Code401301280390
Chain diameter
mm
18-20
WLL
ton
12.8
Weight
kg
7.28
Delivery time10
Blueprint
CAD-file
4013015503902215.510.310
Part Code401301550390
Chain diameter
mm
22
WLL
ton
15.5
Weight
kg
10.3
Delivery time10
Blueprint
CAD-file
