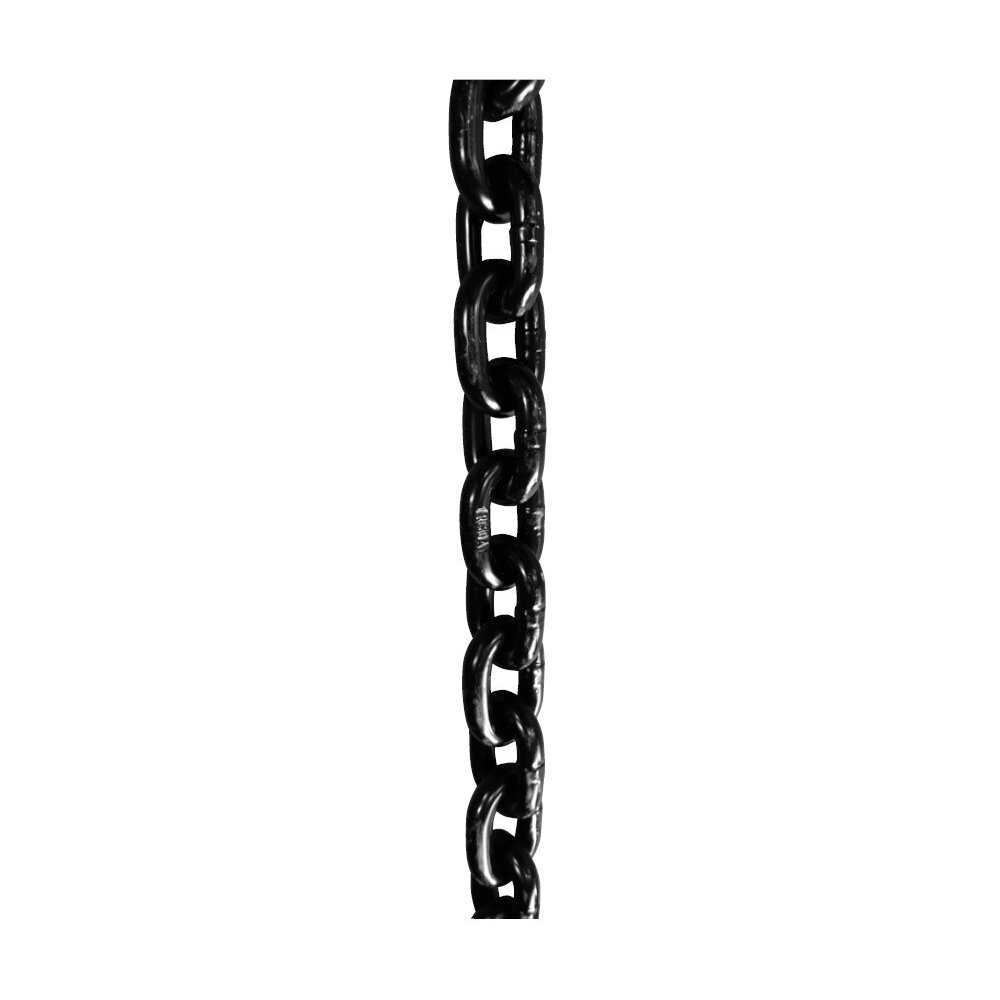

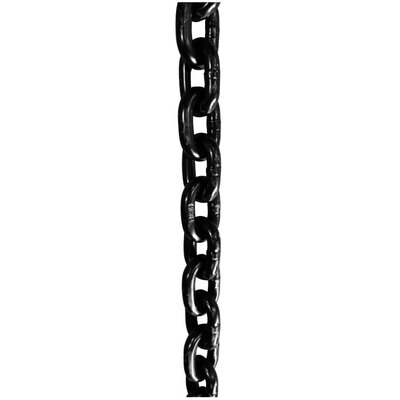

High-quality calibrated lifting chain intended for use in demanding applications like Grade 8 chain slings and chain lashings.
Features:
- Safe - each chain link is proof load tested 2,5 x WLL in the factory prior delivery
- Safe - each production batch is tested to meet the min. breaking force
- Ductile - Min. 20% elongation shall be achieved before failure
- Accurate - each length of chain is calibrated in the factory prior delivery
- Consistent – PSL chains are made in automatic chain welding machines
- Compliant - the chains fulfill EN 818-2 and the Machinery directive 2006/42/EC
- Each barrel includes a 14 language 2.2 Certificate and EC/UKCA Declaration of Conformity
- Each chain length carries a chain tag at the end for quick and positive identification
- The barrel is marked with an info sticker that allow quick and positive identification of the chain inside
- Material: Quenched and Tempered Alloy Steel of Grade 8 quality (EN 818-2)
- Marking: According to standard, CE-marked, UKCA-marked, Factory symbol, Grade 8, Traceability batch code marking
- Temperature range: -40°C up to +200°C without reduction of WLL. Up to 400°C with reduction acc. to standard.
- Finish: Black electrophoretic paint (RAL 9005).
- Standard: EN 818-2
- Safety factor: 4:1
- Grade: 8
