Swivel Hoist Ring 8-231

  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Me

Show more

0.5
  • 0.5
  • 0.7
  • 1
  • 1.5
  • 2
  • 2.5
  • 3
  • 5
  • 5.6
  • 7.8
  • 12.5
  • 15.6
  • 20
  • 22
  • 22.5
Part code: 42158231005
Part codeWLL
ton
Thread
mm
Torque
Nm
Pitch DIN13Weight
kg
Delivery timeBlueprintCAD-fileAdd to cartMore details
421582310050.5M 8301,250.310
Part code42158231005
WLL
ton
0.5
Thread
mm
M 8
Torque
Nm
30
Pitch DIN131,25
Weight
kg
0.3
Delivery time10
Blueprint
CAD-file
421582310070.7M 10601,50.310
Part code42158231007
WLL
ton
0.7
Thread
mm
M 10
Torque
Nm
60
Pitch DIN131,5
Weight
kg
0.3
Delivery time10
Blueprint
CAD-file
421582310101M 121001,750.310
Part code42158231010
WLL
ton
1
Thread
mm
M 12
Torque
Nm
100
Pitch DIN131,75
Weight
kg
0.3
Delivery time10
Blueprint
CAD-file
421582310151.5M 1412020.910
Part code42158231015
WLL
ton
1.5
Thread
mm
M 14
Torque
Nm
120
Pitch DIN132
Weight
kg
0.9
Delivery time10
Blueprint
CAD-file
421582310202M 1615020.92
Part code42158231020
WLL
ton
2
Thread
mm
M 16
Torque
Nm
150
Pitch DIN132
Weight
kg
0.9
Delivery time2
Blueprint
CAD-file
421582310252.5M 182002,51.910
Part code42158231025
WLL
ton
2.5
Thread
mm
M 18
Torque
Nm
200
Pitch DIN132,5
Weight
kg
1.9
Delivery time10
Blueprint
CAD-file
421582310303M 202502,512
Part code42158231030
WLL
ton
3
Thread
mm
M 20
Torque
Nm
250
Pitch DIN132,5
Weight
kg
1
Delivery time2
Blueprint
CAD-file
421582310505M 2440032.610
Part code42158231050
WLL
ton
5
Thread
mm
M 24
Torque
Nm
400
Pitch DIN133
Weight
kg
2.6
Delivery time10
Blueprint
CAD-file
421582310565.6M 2740034.92
Part code42158231056
WLL
ton
5.6
Thread
mm
M 27
Torque
Nm
400
Pitch DIN133
Weight
kg
4.9
Delivery time2
Blueprint
CAD-file
421582310787.8M 305003,5510
Part code42158231078
WLL
ton
7.8
Thread
mm
M 30
Torque
Nm
500
Pitch DIN133,5
Weight
kg
5
Delivery time10
Blueprint
CAD-file
4215823112512.5M 361,00049.62
Part code42158231125
WLL
ton
12.5
Thread
mm
M 36
Torque
Nm
1,000
Pitch DIN134
Weight
kg
9.6
Delivery time2
Blueprint
CAD-file
4215823115615.6M 421,5004,510.92
Part code42158231156
WLL
ton
15.6
Thread
mm
M 42
Torque
Nm
1,500
Pitch DIN134,5
Weight
kg
10.9
Delivery time2
Blueprint
CAD-file
4215823120020M 482,000511.610
Part code42158231200
WLL
ton
20
Thread
mm
M 48
Torque
Nm
2,000
Pitch DIN135
Weight
kg
11.6
Delivery time10
Blueprint
CAD-file
4215823122022M 562,1005,51510
Part code42158231220
WLL
ton
22
Thread
mm
M 56
Torque
Nm
2,100
Pitch DIN135,5
Weight
kg
15
Delivery time10
Blueprint
CAD-file
4215823122522.5M 642,200616.310
Part code42158231225
WLL
ton
22.5
Thread
mm
M 64
Torque
Nm
2,200
Pitch DIN136
Weight
kg
16.3
Delivery time10
Blueprint
CAD-file
  • The product is equipped with RFID chip
  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.
  • Features: Built-in RFID/NFC chip
  • Material: Forged alloy steel, quenched and tempered
  • Marking: According to standard, CE-marked, WLL, size, steel quality, manufacturer ID and traceability
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Painted
  • Standard: EN 1677-1
  • Safety factor: 4:1

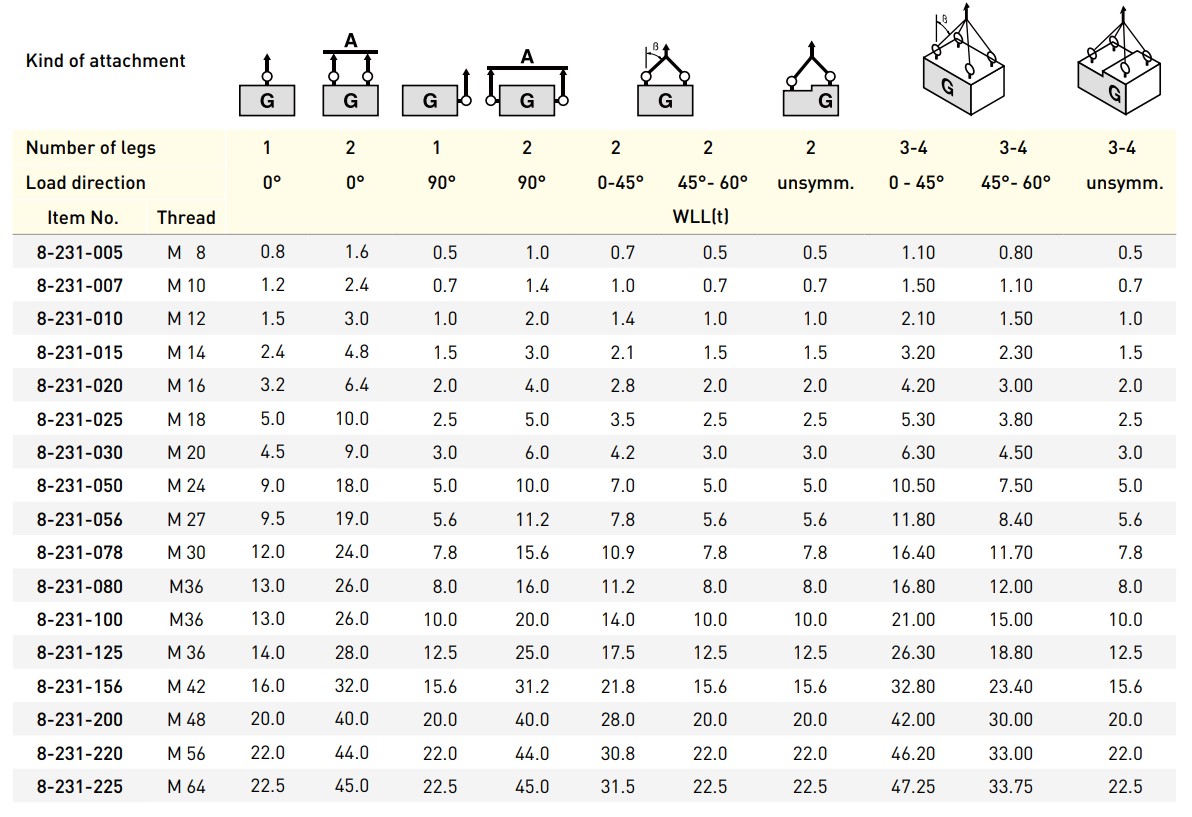

Load table lifting point 8-231
