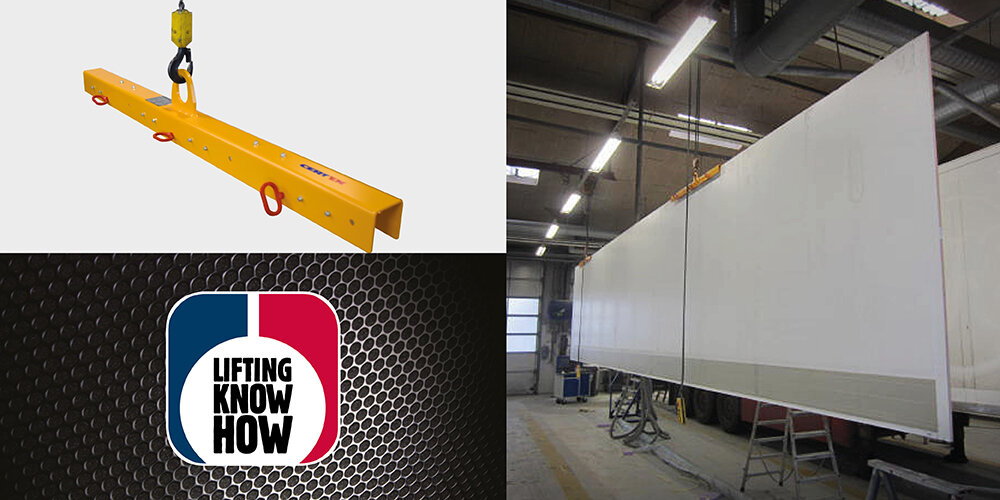

Mounting of lorry sides

The lifting beam is designed in a U-profile, with white nylon protection inside, and locking pins for fastening the lorry side. The sides are fastened in the lifting beam with the locking pins, in holes that fit with the holes in the lifting beam. The beam is designed for direct attachment with the crane hook in the central lifting eye.

The lifting beam can ONLY work in sets of 2 pieces. / WLL 2 x 750 kg.

• WLL: 2 x 750 kg (using two beams)
• U-profile opening: 67 mm
• Attachment: Fixed central eye

Do you also have difficult lifting challenges in your company? Contact us, we would like to send out a consultant so you can find a new and better lifting solution together.

See also our standard program of lifting beams, maybe we already have some you can use.
