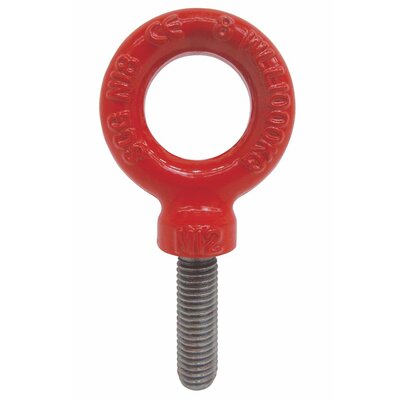

Eyebolt

For a maximum angle of use 90º between the two legs - divide the WLL by two.
Stated WLL is at 0º.

Show more

Part Code:

For a maximum angle of use 90º between the two legs - divide the WLL by two.
Stated WLL is at 0º.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked, WLL, sizes, steel quality, productname, traceable.
  • Finish: Red painted.
  • Standard: ISO 3266
  • Note: Approved for lifting.
  • Safety factor: 4:1.


        Load 1

     Load 2




1
2

Size
Single-leg
2-legs
M8X24
0,4
0,8
M10X28
0,7
1,4
M12X40
1,0
2,0
M14X40 1,2 2,4
M16X51
1,5
3,0
M20X56
2,5
5,0
M24X67
4,0
8,0
