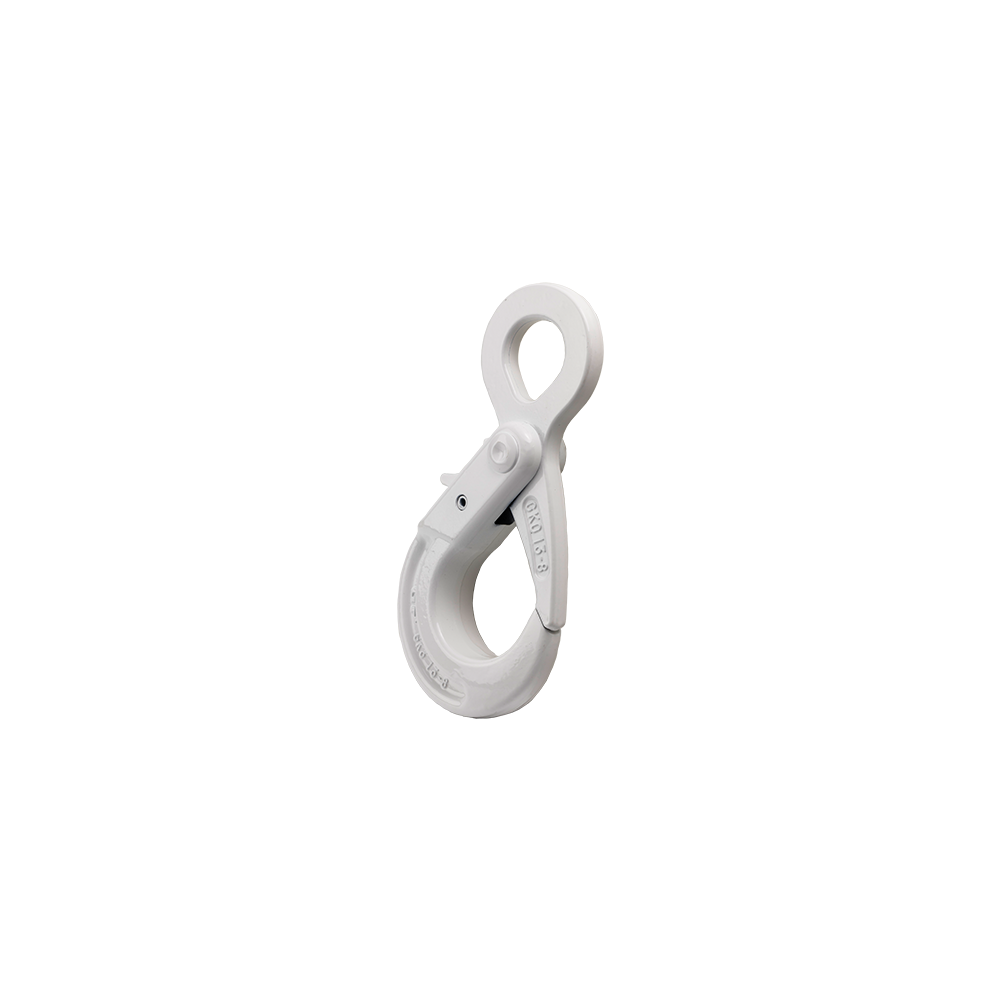

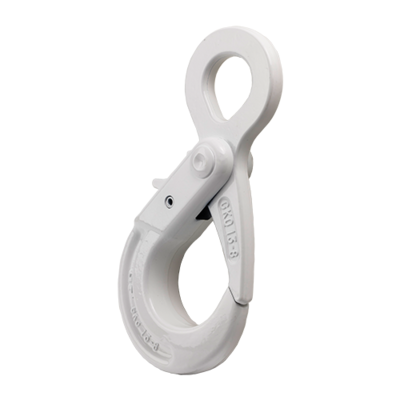

The Green Pin® Self-Locking Hook E is a grade 8 eye self-locking hook. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The GK hook is a compact, lightweight hook. In comparison to an XL hook, it has the same working load limit, with a smaller size. The eye of the hook can be connected to grade 8 chain with a connecting link, to a webbing with a web sling connector or to a wire rope with a thimble. The flat on the eye enables the assembly with an omega link or on a thimble. The Green Pin® Self-Locking Hook E is available in a range to suit 7/8 mm up to 22 mm grade 8 chain.
Certification: At no extra charge this product can be supplied with a works certificate, and/or EC Declaration of Conformity.
- Material: Alloy steel, quenched and tempered.
- Temperature range: -40°C up to +200°C
- Safety factor: 4:1
- Grade: 8
