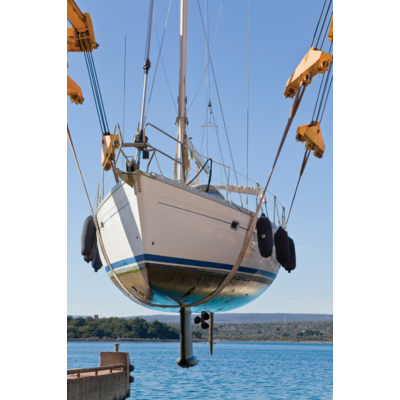

Slings for lifting boats, the slings are white to prevent discoloration in salt water.
Design: Double sewn, flat woven slings with folded eyes. Alternatively with "shortening eyes" on request.
Chemical resistance: Resistant to most acids but not strong alkalizes.
Stretch with working load: 2-3%.
Length tolerance: Nominal length ±3%.
Always apply and use extra protections to protect the sling from sharp edges, abrasion, wear and tear, due to the shape of the boat (keel & side).
Contact CERTEX for further information.
- Material: Polyester.
- Marking: According to standard, The slings are provided with a blue label with manufacturer’s symbol, working load limit (WLL), length, CE marking and a label with handling instruction.
- Temperature range: Approx. -40°C up to +100°C.
- Standard: EN 1492-1
- Safety factor: 7:1.
Webbing sling polyester
EN 1492-1
|
Safety Factor 7:1 |
Straight pull | Basket hitch | Choke hitch | Basket hitch | ||
|---|---|---|---|---|---|---|
 |
 |
 |
 |
|||
| 0°−45° | 45°−60° | |||||
| Width | Working load limit (WLL) in tons | |||||
| 50 mm | 1,0 | 2,0 | 0,8 | 1,4 | 1,0 | |
| 60 mm | 2,0 | 4,0 | 1,6 | 2,8 | 2,0 | |
| 90 mm | 3,0 | 6,0 | 2,4 | 4,2 | 3,0 | |
| 120 mm | 4,0 | 8,0 | 3,2 | 5,6 | 4,0 | |
| 150 mm | 5,0 | 10,0 | 4,0 | 7,0 | 5,0 | |
| 180 mm | 6,0 | 12,0 | 4,8 | 8,4 | 6,0 | |
| 240 mm | 8,0 | 16,0 | 6,4 | 11,2 | 8,0 | |
| 300 mm | 10,0 | 20,0 | 8,0 | 14,0 | 10,0 | |
| Factor (KL) | 1 | 2 | 0,8 | 1,4 | 1 | |
