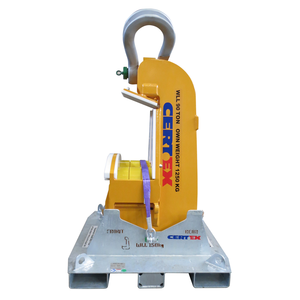

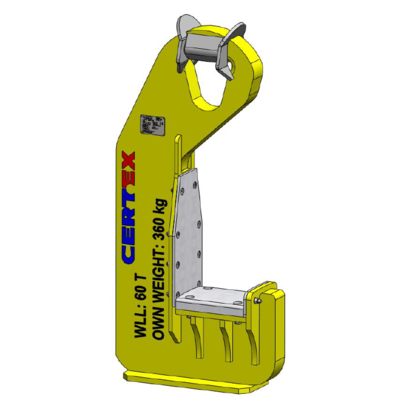

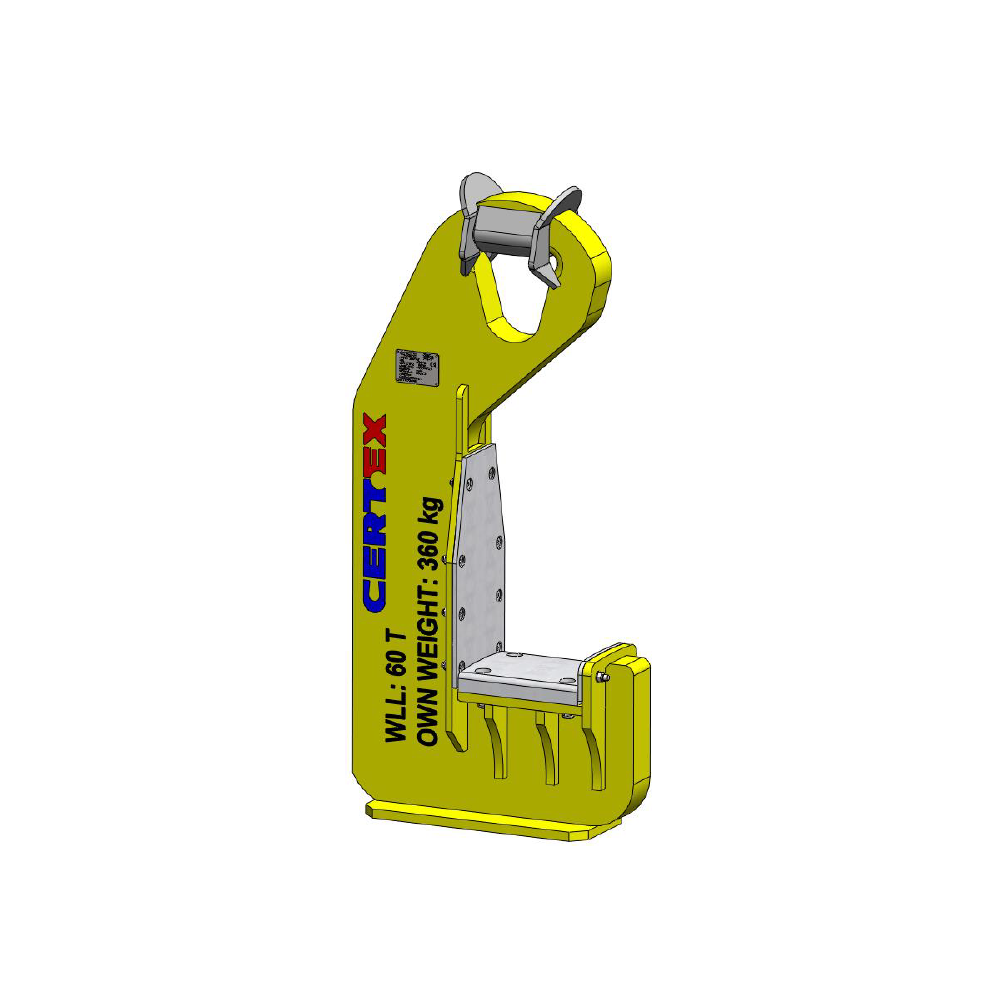

This lifting hook for tower section lifting or other cylindrical items with an inside diameter with a flange, is designed as a C-hook following EN 13155, terms and definitions. It is designed to support the windmill tower section, when it is lifted and transported in a horizontal attitude..
The lifting hook has a special lifting eye designed for a looped lifting sling, allowing connection to a double crane hook. We recommend an Extreema round sling, WLL 30 t, 1,5/3,0-meter EXHCO30/1,5A (ordered separately).
The cradle is protected with plastic plates and hard-formed rubber on the load plate to resist metal-to-metal contact. The lifting hook has an additional plate under it, which allows it to be stored standing up.
- Marking: According to standard, CE-marked
- Temperature range: -10ºC up to + 50ºC
- Standard: EN 13155
- Note: Wind speed: Maximum up to 10m/sec
