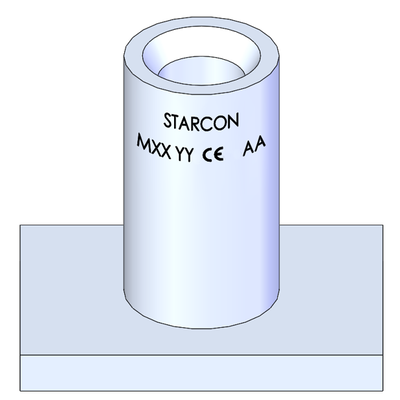

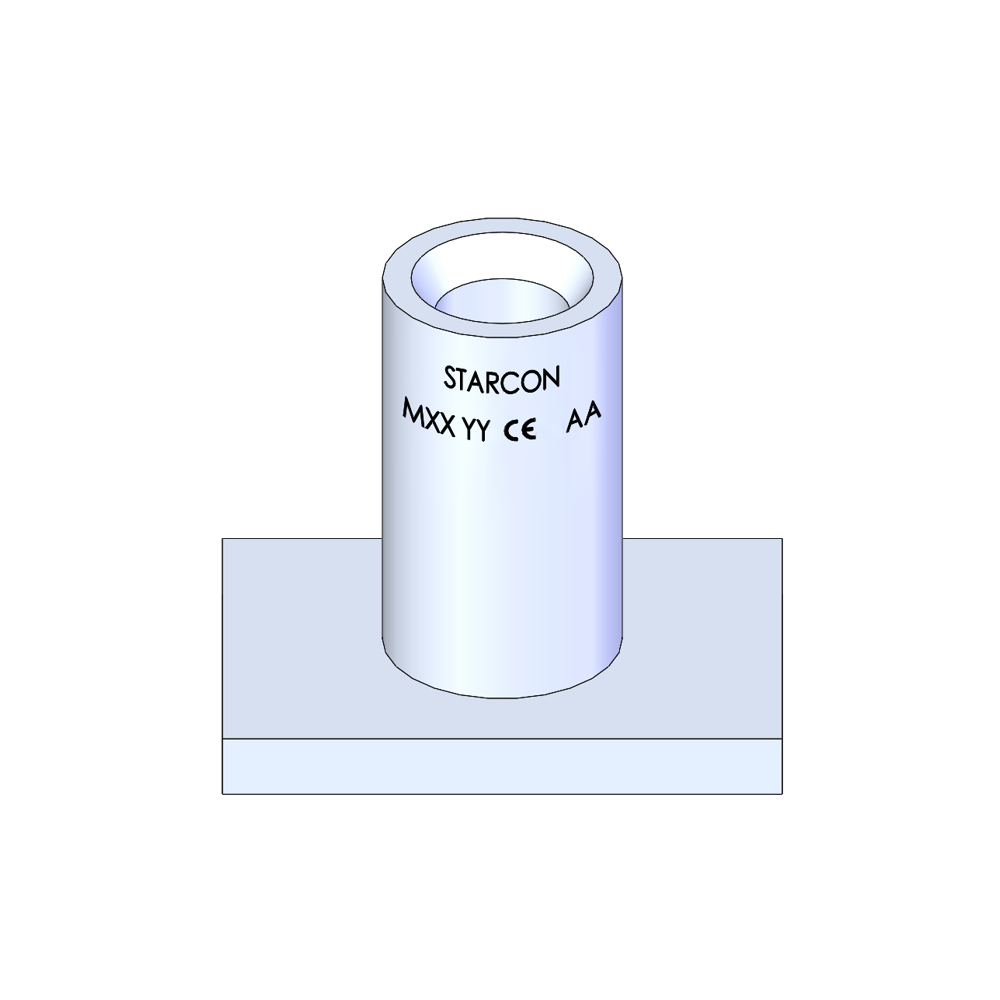

The Starcon lifting socket flat steel anchor is distinguished by its large footplate and low installation height, which makes it particularly suitable for embedding in concrete slabs and concrete elements of limited thickness. The anchor has a specially designed base with a large contact area.
Additional reinforcement can be mounted on the top of the foot when needed. The head of the welded-on flat steel anchor is cylindrical with internal thread and is available in both metric and round threads. This makes it easy to attach wire rope straps and threaded lifting equipment by screwing these onto the transport anchor.
Areas of application: Floor, plate and slab elements.
Areas of application: Floor, plate and slab elements.
Advantages: Elements with a low installation height.
Easy placement of reinforcement on top of the plate/foot.
Low dead weight.
Load group: 0.4t – 4t
Technical information: CE marking according to MD 2006/42 EF
Starcon product is designed according to EN13155-2009 and follows the guidelines of VDI/BV-BS 6205 and DS/CEN/TR 15728.
EPD: Our Environmental Product Declarations (EPDs) are available in the LCA NO calculator/software. These EPDs have been prepared in strict accordance with ISO 14025 and EN 15804 standards.
Download the EPDs from the LCA database:
Download the EPDs from the LCA database:
Surface treated Products: Starcon Lifting and Handling Systems for Concrete elements - Surface Treated. - EPD Norge
- Marking: CE-marked, Thread size, batch code, load group + S(Starcon)
- Finish: Electro-galvanized - Corrosion class C3 - ISO 12944-2.
Note: The delivery time for the individual products is estimated and if the desired quantity is not in stock, please contact CERTEX Danmark A/S – Starcon to get information about the applicable delivery time.
